Preparation guide and templates

Follow all 3 sections of this guide to prepare your designs correctly.

main REQUIREMENTS

1. PDF FORMAT

The files you generate should preferably be in Pdf format. Failing that, they can also be high quality .TIFF or .JPG files. You can export it in PDF with the save as an option in almost all editing programs.


3. 300 DPI RESOLUTION

To prevent images showing pixelation, the file must be 300dpi (pixels per inch).

texto negro.gif

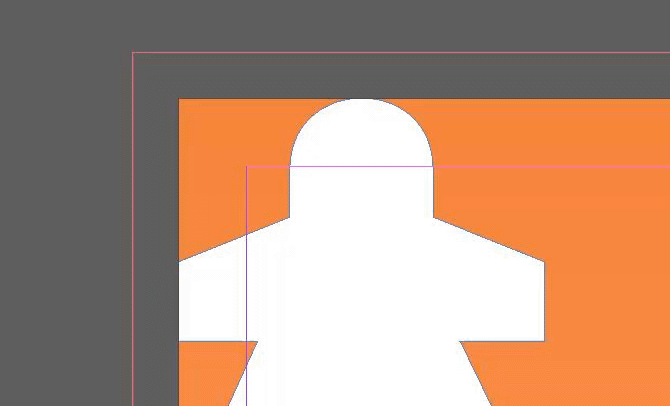

5. LEAVE 4mm OF BLEED

When designing the file it is important to leave 3 or 4mm of bleed outside the fundamental design that will be outside the area to be printed, as well as respecting the safety margins so that important elements are not cut out.

You will find the bleed zones on our templates.

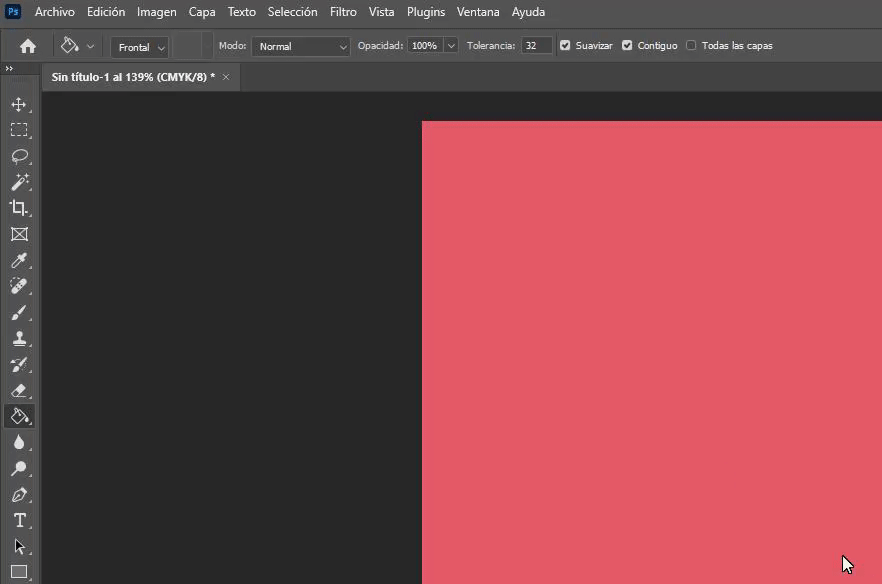

2. COLOR IN CMYK

It is important to make sure that the file is set to CMYK and with the color profile Coated Fogra39.

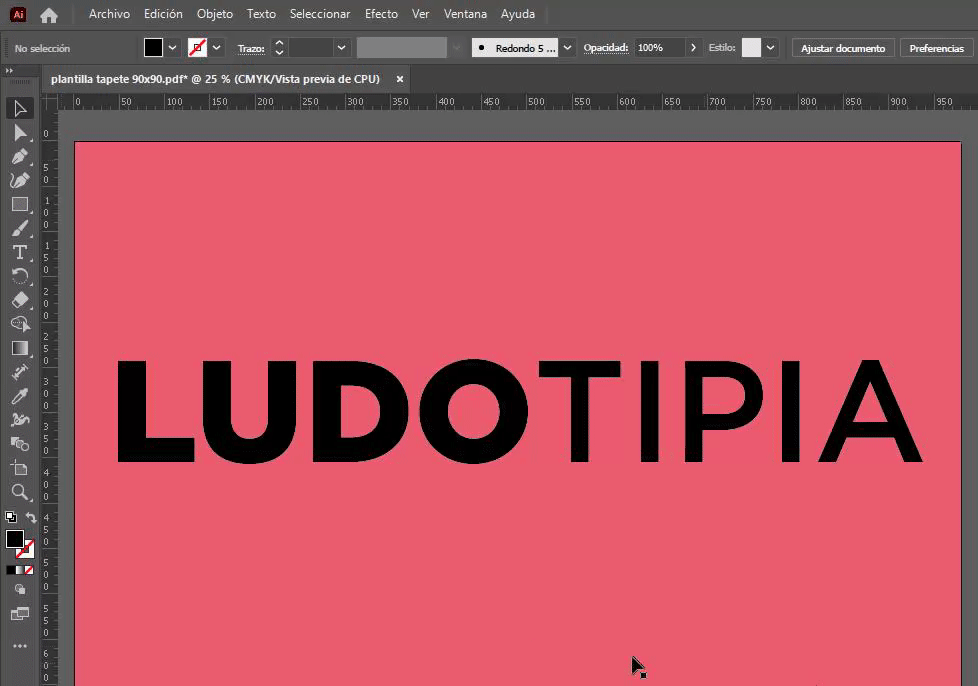

4. TEXTS IN PURE BLACK

The texts in black must have values C0, M0, Y0, K100. Also use in large areas with that tone.

Requisitos pricipales
Plantillas
preparation guide

*Familiarize yourself with the template you have chosen before proceeding.

1. PREPARE THE TEMPLATE

  1. Download the template and open it in your design program.

2. INSERT YOUR DESIGN IN THE TEMPLATE

  1. Check that your design conforms to the main requirements.

  2. Insert your design into the template, on a layer below.

  3. Check that your design conforms to the template's specifications.

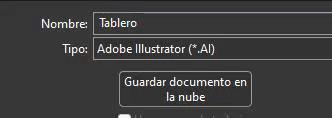

3. EXPORT YOUR FILE

  1. Once both the template requirements and the main requirements are covered, you can export your design.

  2. Hide the template layer and leave only your design.

  3. Export the resulting file as a high-quality PDF or JPG

4. UPLOAD YOUR FILES

  1. Compress your files in a .rar or .zip before uploading.

  2. When you complete your purchase, the link to the file upload platform will appear.

  3. If you have already made your purchase, send your files in response to the purchase confirmation email we sent you.




Specific requirements
  • DECKS

    • For playing cards you must generate a file for each EXPENSIVE and another file for each WITHDRAW/REVERSE.

    • You can also make a single .pdf file with as many pages as letters carry the deck And another for the withdrawals in order if they are different in a relative way to both naming them as 001, 002, 003, etc.

    • If the deck has a single removal common to all cards, it is enough that you generate a single file for the withdrawal.

  • TOKENS, BOARDS, BOXES, PLATS, ETC.

    • In the case of BOARDSBOXESTOKENS either MATS you must generate another additional file, without hiding the template.

    • In the case of TOKENSYou must also attach the file with the vectorized die lines that you have created.
